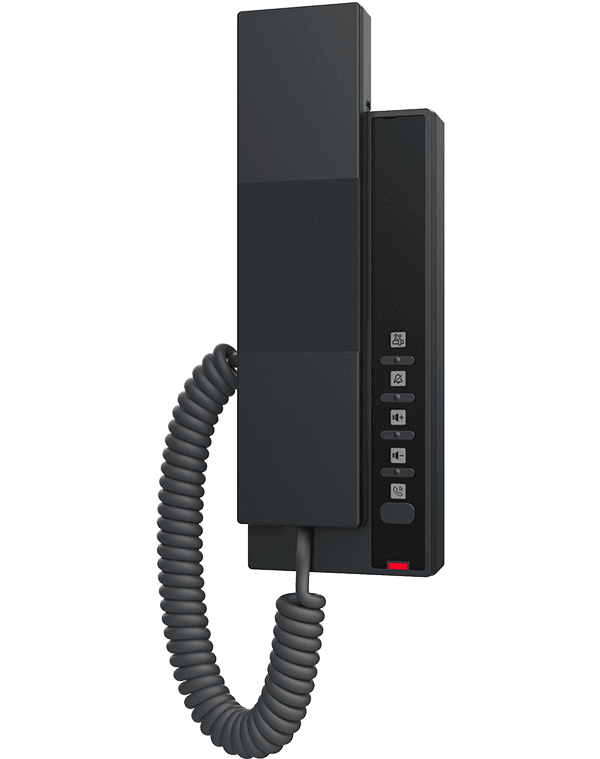

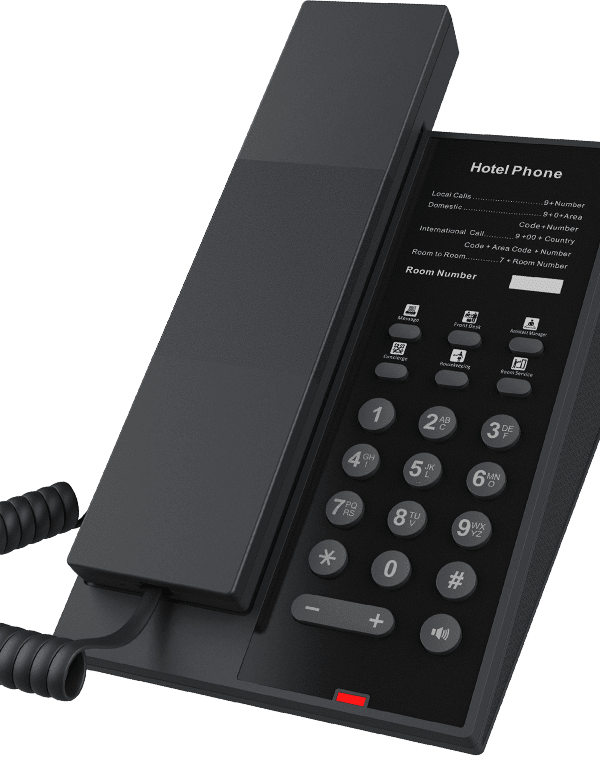

Fanvil H2 Compact IP Phone
Fanvil H2 Compact IP Phone Suitable For Hotel Rooms
Available in KENYA from Starmount Solutions Limited
Description
Features
- Wall-mount
- Call hold, redial, transfer, release
- Call transfer (bland or consultative)
- Ring tone high/low/off
- Do not disturb
- Paging/intercom
- Configurable dial plan
User Interface
- Keypad dialing
- Voicemail retrieval via keypad or programmable keys
- 1 programmable key for speed dial or feature access
Configuration and Management
- WEB management
- Auto-provisioning using TFTP/FT
- Recover firmware and factory reset through POST mode
- Upgrade firmware via FTP or TFTP
Enterprise Functionality
- 802.3af power over Ethernet
- VLAN and DSCP
- VPN
Fanvil i16V SIP Video Intercom indoor system
Fanvil i16V SIP Video Intercom
The Fanvil i16V Video Intercom is a high-definition, cost-effective and reliable video intercom with high compatibility and multiple protection
Fanvil i16V Key Features
- Built-in HD camera with infrared night vision, adopt H.264 codec
- HD voice speech quality with built-in 3W speaker and acoustic echo canceller (AEC)
- IP65 waterproof and dustproof
- IK10 anti-collision with robust die-cast aluminum frame
- Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
- -40°C to 70°C wide range temperature adaptability
- Built-in 2 short-in detect ports and 2 short-out control ports
- Supports online management and upgrade
- PoE
Applications of Fanvil i16V SIP Video Intercom
- Apartments / Residential
- School Intercom Solution
HD audio
The Fanvil i16V has a built-in 3W speaker with high HD audio quality and background noise reduction.HD video
Users can press the “Call” button to make calls with full duplex video. A built-in 720P HD camera offers infrared night vision.24H Video surveillance
The i16V can be used for 24H video monitoring when connected with a VMS (video management system) via ONVIF. 16V can also connect to the audio input port of the camera or digital record device with an record output port to provide 24h monitoring.Multi-Protection design
Fanvil i16V SIP Video Intercom
The i16V boasts waterproof and dustproof grade IP65, anti-collision standard IK10 and a wide temperature range from -40℃ to 70℃. This means it is fully certified to can satisfy the special demands in some of the most challenging industries.
Alarm Linkage
The i16V can trigger a video camaera recording or the alarm indicator with the short output port.Access Control
The i16V can help open the door remotely by connecting to the electric lock with the short-circuit input port.External active speaker
The i16V can connect to speaker by the audio output port to play voice message or music.Multi-platform compatibility
The i16V is has no limitation between different platformsFanvil i16V Technical Specifications
General
- 2 SIP lines
- Full-duplex handsfree(HF)
- Intelligent DSS Keys (Speed Dial/intercom etc)
- Auto answer
- Intercom function
- Industrial Standard Certifications: IP65&IK10, CE/FCC
Intercom function
- Dynamic multicast function
- Support ONVIF
- Support customized DSS Keys
- Network Time Synchronization
- Action URL / Active URI
Video
- Sensor: 1/2.7” color CMOS2 Megapixels
- Video codec: H.264
- Resolution: main stream 1280×720@25fps
- Substream 704×576(D1)@25fps
- Viewing angle: 112° (H), 84° (V)
- Minimum illumination: 0.1Lux, support for infrared illumination
Audio
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband Codec: G.722
- Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background
- Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO
Deployment and maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Import and Export
- Firmware Upgrade
- Syslog
Networking
- 10/100Mbps
- IP Configuration: Static / DHCP / PPPoE
- Network access authority authentication: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- QoS
Protocols
- 10/Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specification
- 1 DSS button (speed dial button)
- 1 RJ45 port
- 1 audio output interface
- 1 recording output interface
- 2 short circuit input interface
- 2 short circuit output interface
- G-sensor for tamper alarm
- Power: DC12V/1A or PoE
- Housing material: aluminum alloy shell
- Protection level:IP65 and IK10
- Installation: Wall-mounting
- Working temperature: -40 ~ 70°C
- Storage temperature: -40 ~ 70°C
- Relative humidity: 10% – 90%
- Equipment size: 195x120x34mm
- Packing size: 260x165x62mm
- Equipment weight: 1015gFanvil_i16V_User+Manual i16V_datasheet_EN_V1.3_20200117 i16V_Mouting+dimension__V1.0_20190214 fanvil_i16v_i32v_user_manual
Fanvil i32V SIP Video Door Phone
Fanvil i32V SIP Video Door Phone
The Fanvil i32V is designed for outdoor scenes with high reliability, HD Audio/Video, and IP65/IK10 protection grade. It combines with access control, security, audio/video intercom and broadcasting functionalities for smooth, safe and clear communication.
Fanvil i32V Key Features
- Built-in HD camera with infrared night vision, adopt H.264 codec
- Access control (by call, RFID/IC card and indoor switch)
- All-in-one (Access control, Intercom and Broadcasting)
- HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller (AEC)
- IP65 waterproof and dustproof
- IK10 anti-collision with robust die-cast aluminum frame
- -40°C to 70°C wide range temperature adaptability
- Support online management and upgrade
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Applications- Prisons
- Holiday Home
- Warehouses
Different ways to unlock the door with fanvil i32v
Support to open the door with RFID/IC cards, remote DTMF and indoor switch.
Support HD Video and Two Video Streams
With HD camera with infrared night vision, visitors can be identified clearly even at night. Support two video streams in which the main code stream works for high-quality video on monitoring and the subcode stream for smooth SIP video call.Multi-Protection Design
Featuring the waterproof and dustproof grade IP65, the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, i32V can be applied in different kinds of outdoor environment.
Fanvil i32V – Technical Specifications
Generic
- 2 SIP Lines
- Full-duplex handsfree
- Intelligent DSS Keys (Speed Dial/intercom etc)
- Auto answer
- Intercom function
- Industrial Standard Certifications: IP65&IK10, CE/FCC
Access Control Function
- Unlock door method: DTMF, RFID/IC card, indoor switch, WEB page
- Support 2000 Remote access list
- Support 2000 RFID/IC cards
- Support 200,000 door open records
- Support electric lock internal or external power supply options
- Dynamic multicast function
- Support ONVIF
- Support customised DSS keys
- Network Time Synchronisation
- Action URL / Active URI
Audio
- Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband Codec: G.722
- Full-duplex Acoustic Echo Canceller (AEC) ̢ Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO
Video
- Sensor: 1/2.7” colour CMOS
- 2 Megapixels
- Video Code: H.264
- Resolution:
– Main stream 1280×720@25fps
– Sub-stream 704×576(D1)@25fps - Viewing angle: 112° (H), 84° (V)
- Minimum illumination: 0.1Lux, support for infrared illumination
Networking
- 10/100 Mbps
- IP Configuration: Static / DHCP / PPPoE
- Network access authority authentication: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIPPNP
- Web Management Portal
- Web-based Packet Dump
- Configuration Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- 1 DSS button (speed dial button)
- 1 RJ45 port
- 1 Wiegand port
- 1 audio output interface
- 1 recording output interface
- 2 embedded short circuit input interface
- 2 relays: MAX DC30V / 2A, AC125V / 0.5A
- Active switching output: 12V / 500mA DC(only 1 relay support)
- 2 door magnetic detection interface
- 1 tamper alarm switch
- RFID reader: ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
- Power: DC12V/1A or PoE
- Housing material: aluminum alloy shell
- Protection level:IP65 and IK10
- Installation: Wall-mounting
- Working temperature: -40 ~ 70 °C
- Storage temperature: -40 ~ 70 °C
- Relative humidity: 10% – 90%
- Equipment Dimension: 195x120x34mm
- Packing Dimension: 260x165x62mm
- Outer CTN Dimension: 348x328x280mm(10 PCS)
- Equipment weight: 1015g
Safety Instructions when handling this product
Please read the following safety notices before installing or using this unit. They are crucial for the safe and reliable operation of the device.
- Please use the external power supply that is included in the package. Other power supply may cause damage to the phone and affect the behavior or induce noise.
- Before using the external power supply in the package, please check the home
power voltage. Inaccurate power voltage may cause fire and damage. - Please do not damage the power cord. If power cord or plug is impaired, do not use it because it may cause fire or electric shock.
- Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.
- This phone is design for indoor use. Do not install the device in places where there is direct sunlight. Also do not put the device on carpets or cushions. It may cause fire or breakdown.
- Avoid exposure the phone to high temperature or below 0ȭ or high humidity.
- Avoid wetting the unit with any liquid.
- Do not attempt to open it. Non-expert handling of the device could damage it.
Consult your authorized dealer for help, or else it may cause fire, electric shock and breakdown. - Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it.
Wipe it with a soft cloth that has been slightly dampened in a mild soap and water solution. - When lightning, do not touch power plug, it may cause an electric shock.
- Do not install this phone in an ill-ventilated place. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.How to configure and install i32v is described in the guide below
manual= fanvil_i16v_i32v_user_manual
Free Delivery
For all orders over Ksh 50,000
100% Money Back
Within 30 Days Guaranteed
(more…)Secure Payment
100% secure payment
(more…)24/7 Live Support
Get Help Any Time
(more…)Popular Trends

Featured Product
Products
Shop NowEasy-first Unified Communications
Starmount Solutions offers the best office telephone supplies and offer installation. Try us for the best services in Unified Communications
Office telephony supplier certified unified Communications Starmount
The world’s leading business phone system. More than just a PBX, a call center, and a local Supplier app. We are located in Nairobi White Angle Hse Rm 43/44. We offer a superior shopping experience, rapid delivery, the Best prices, and stellar customer service. We are dealers, suppliers, and resellers of major and Minor brands. Trusted by 1000s of Kenyan ISPs for affordable networking solutions from companies such as Mikrotik, Tp-link, D-link, and Hikvision. Fast delivery all over Kenya.
Topic Today
Wireless camera installation
The Ultimate Guide To Wireless CCTV Installation Process: Can You Fix It Yourself?
The Wireless CCTV Installation process today is not a daunting task. It is simple and doesn’t even require technical skills or the presence of a technician. Now, wait! Before you get your toolkits to drill holes and wire your devices, let us remind you that such steps wouldn’t be extensively necessary as well.
Wireless CCTV Cameras Installation Guide:
Essential Factors To Consider
Quick Steps
- Understanding The Basics
- Choose The Right Height And Angle
- Use WiFi Extenders If Required
- Configuring Your WiFi Connection
- App And Cloud Configuration
1. Understanding The Basics
There are a lot of misconceptions about wireless cameras. At first instance, people generally tend to understand that wireless CCTV camera are devoid of any cables. While this is true, it’s only partially true.
Wireless cameras
are called so because they don’t need wires or cables to transmit footage or data to a physical DVR. Unlike conventional CCTV cameras, there is no need to run cables through the length and breadth of your premises to ensure your camera seamlessly transmits footage to your DVRs and then monitors.
They connect to your WiFi networks and use cloud technology to beam footage across distances. So, to turn your wireless camera on and ensure it is up and running all the time, it still needs a wired power source.
At this point, you should also ensure two things:
- The power source should be on 24/7.
- The location of the power source where you intend to place your wireless camera should not have a weak connectivity reception.
So, now, after assessing all the individual needs of cameras in your network, repeat the process for the entire perimeter of your space.
2. Choose The Right Height And Angle
The next crucial step that ensures your CCTV camera is set up for optimized angle and performance is to select the ideal height and angle for its placement. Make a note of the following points:
- The camera should not be placed too low so that it could be easily seen or tampered with during instances such as break-ins or fire hazards.
- At the same time, it should not be too high that the camera fails to pick up details from your environment.
- As far as the angle of your wireless CCTV camera is concerned, title it for maximum coverage. Ideally, corners and brighter vantage points are recommended. If it’s a fisheye camera, the widest corner would be good as it has a wider coverage than conventional lenses.
3. Use WiFi Extenders If Required
Not all CCTV cameras could be placed at the ideal spots. Some might require Wireless CCTV Installation at places more remote than the rest. It could be in a parking space, near elevators, corners of a workplace, secluded spaces like a garage, and more.
In such spaces, wireless connectivity generally tends to become weaker. And because the only mode of data transmission and communication wireless CCTV cameras rely on is WiFi, you should ensure WiFi is at optimum standards at all times.
That’s why we recommend deploying WiFi extenders at the right places to boost wireless signals for cameras to utilize and seamlessly send back footage. Wireless extenders are easily available in marketplaces and retail stores.
Or, if you want to save yourself from such hassles, you could get 4G CCTV cameras from VMukti. These come with cellular connectivity and can be placed anywhere regardless of the strength of your WiFi network.
4. Configuring Your WiFi Connection
At the time of your CCTV installation, be ready with all the details you need to configure your WiFi to work with your new security camera.
5. App And Cloud Configuration
The final two steps to ensure a smooth Wireless CCTV Installation is configuring the cloud and the dedicated app.
Know About Wireless Cameras
Fanvil
Sale
-
RJ45 COUPLERS Connector
KSh100KSh60
New Arrivals
-
Yealink SIP-T31P IP Phone
KSh6,500KSh6,200
