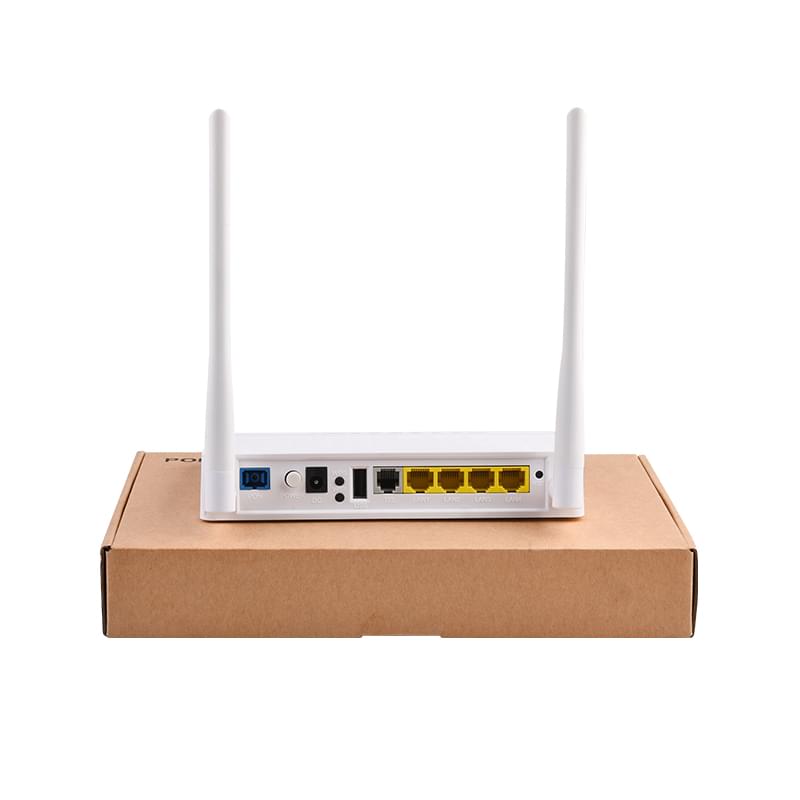

HG8546M Fiber optic xpon router 4 port
With one GE port, three FE ports, one POTS port, one USB port, and WIFI 802.11 b/g/n, the Huawei HG8546M FTTH is a home fiber GPON/ONU r optical network terminal (ONT) of the Huawei FTTX solution.
KSh 1,800.00Listed product price · confirm current availability with Starmount.
Request a quote for this product Discuss it on WhatsApp
Equipment supplyInstallation enquiriesDirect team contact
Know what you’re choosing
Product information
HG8546M;
HG8546M Product Parameters Information
Interface
optical interface 1 for XPON Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64, transmission distance of 20KM, Ethernet port (LAN), and 1*GE are required to meet the 1000BASE-PX20+ standard. Auto-MDI/MDI-X, Full Duplex / Half-Duplex RJ45, Auto-negotiation RJ45 ports, and Power Supply Port 12V DC input
- support IEEE802.3 QAM, and OLT can control ONU remotely
- Support Telnet and SNMP for remote management of Huawei 4G Router B315 (https://www.router-switch.com/pdf/huawei-4g-router-b315-datasheet.pdf).
- local control
- Status monitoring, configuration management, alarm management, and log management are examples of management tasks.
- Environmental Specifications
- Casing made of plastic. Available at: https://netpointtechnologies.co.ke/product-category/networking-equipment/Huawei
- Power
- adaptor for an external 12V, 0.5A AC/DC power source
- 3 watts of power are used.
- Dimensions
- 25mm x 78mm x 78mm in size (H)
- 0.1kgEnvironment
- operating range: 0 to 50 °C
- Storage
- Temperature:-40~85℃
- Working Humidity: 10% to 90% (Non-condensing)
