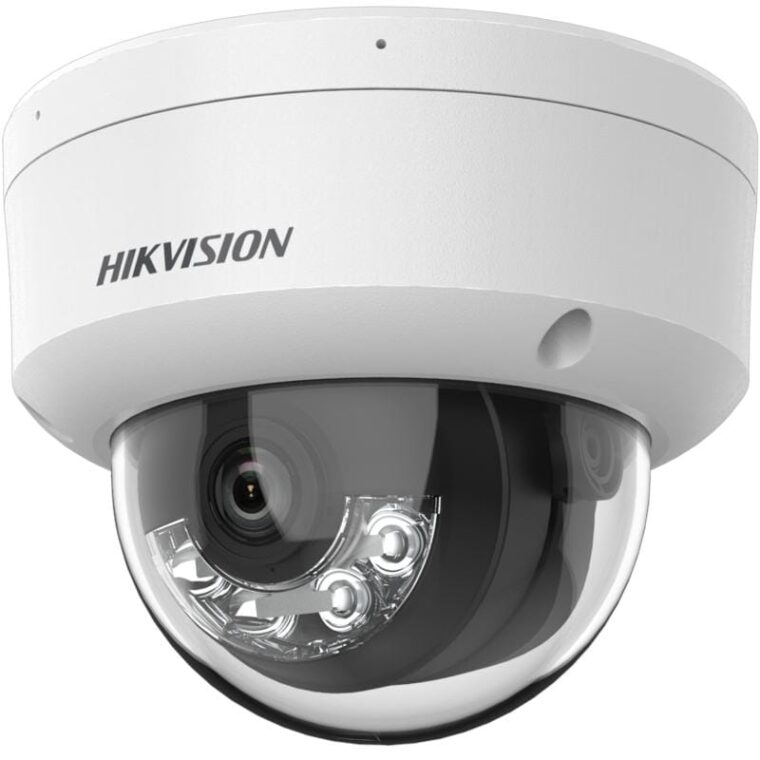

DS-2CD1143G2-LIU(F) 4 MP Smart Hybrid Light Fixed Dome Network Camera

DS-2CD1143G2-LIU(F) 4 MP Smart Hybrid Light Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone for real-time audio security
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot) (Optional)
• Water and dust resistant (IP67) and vandal resistant (IK08)

• Camera
• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

• Lens
• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

  4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

• DORI
• DORI

  2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

  4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength: 850 nm

• Video
• Main Stream

  50 Hz:

  20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (2560 × 1440)

  24 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI) 1 fixed region for main stream

• Audio
• Audio TypeMono sound
• Environment Noise Filtering Yes
• Audio Sampling Rate: 8 kHz/16 kHz
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network
• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR): 120 dB
• SNR≥ 52 dB
• Day/Night Switch Day,Night,Auto,Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Settings: rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in MicrophoneYes
• Reset Key-F: Yes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm,exception
• LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

• General
• Power

  12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 7.5 W

• MaterialMetal & Plastic
• DimensionØ121.4 mm × 97.7 mm (Ø4.8″ × 3.8″)
• Package Dimension 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: approx. 550 g (1.2 lb.)
• With Package Weight: approx. 800 g (1.8 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
