Description

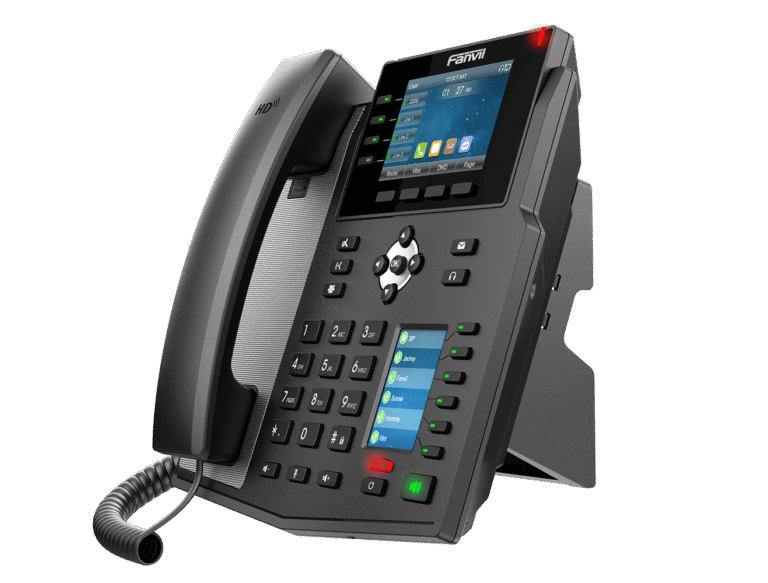

Fanvil X5U Enterprise IP Phone

Shop for Fanvil X5U Enterprise IP Phone in Nairobi, Kenya  from Starmount Fanvil dealers.

The new Fanvil X5U IP Phone is a high-end enterprise desktop phone which comes with a 3.5 inch Color Screen, plus a secondary intelligent DSS Key-mapping LCD Screen to increase enterprise users’ productivity.  It combines the advantages of existing enterprise phone UI design experience with a color screen. The UI appearance and operating experience have a qualitative leap. The X5U has 8 DSS keys corresponded to the LCD display to provide dynamic DSS/BLF functions up to five pages and virtualized for a total of 40 DSS keys.

The X5S supports Bluetooth with a USB dongle for a better experience in enterprise environments.  It also supports EHS Wireless Headsets. Scan the QR code on the X5U screen to get into the Fanvil web interface. The web page can be accessed with a mobile phone at anytime and anywhere.  Use the Web Dial “One Button Call” function with call log and phonebook to give users fast access for all calls.  The new X5S delivers a fantastic user experience at an incredible price.

Key Note

HD Voice

Power over ethernet (POE)

X5: Two Network interfaces (10M/100M)

X5G: Two Network interfaces (10M/100M/1000M)

6-SIP Line Executive IP Phones.

SIP2.0(RFC3261) & Correlative RFCs

Support L2TP and Open VPN

128×64 dot-matrix with backlit

DSS Key-mapping LCD x1: 64×192 dot-matrix

8 BLF Button x 5 Page (Total 40 BLF Button)

RJ9 Headset Port

Smart and friendly user interface

Call Features

Call out / answer / reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial/Auto-Redial
Do-Not-Disturb (per line / per phone)
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Hot-Desking

Phone Features

Phonebook (1000 entries)
Remote Phonebook (XML/LDAP)
Call log (300 entries, in/out/missed)
Black/White List Call Filtering
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Action URL / Active URI

Network Features

10/100/1000Mbps Ethernet, dual bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QOS

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069

Main LCD x1: 3.5 inch (480×320) color-screen LCD
DSS Key-mapping LCD x1: 64×192 dot-matrix
Keypad: 38 keys, including
– 4 Soft-keys
– 4 Function keys
– 4+1 Navigation keys + OK
– 12 Standard Phone Digits keys
– 3 Volume Control keys, Up/Down/Mute(Microphone)
– 1 Hands-free key
– 8 DSS Keys with tri-color LED
– 1 Page-Switch (PS) key
HD Hands-free Speaker (0 ~ 7KHz) x1
HD Hands-free Microphone (0 ~ 7KHz) x1
HD Handset (RJ9) x1

• USB Port x1 (Connect with BT USB dongle)
• Support Bluetooth headset (Through USB Dongle)
• Support Plantronics Wireless headset (Through Plantronics APD-80 EHS Cable)

Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
RJ9 Phone Jacket x2: Handset x1, Headphone x1
RJ45 Ethernet Jacket x2: Network x1, (802.3AF POE Class 1 Enabled), PC x1 (Bridged to Network)
Main Chipset: Broadcom
DC Power Input: 12V/1A
Power Consumption: (X5) Idle – ~ 1.1W, Peak – ~1.8W (X5G) Idle – ~ 1.55W, Peak – ~2.25W
Working Temperature: 0 ~ 40℃
Working Humidity: 10 ~ 65%
Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
Color: Black
Package Dimensions: 285x270x65mm (W x H x L)
