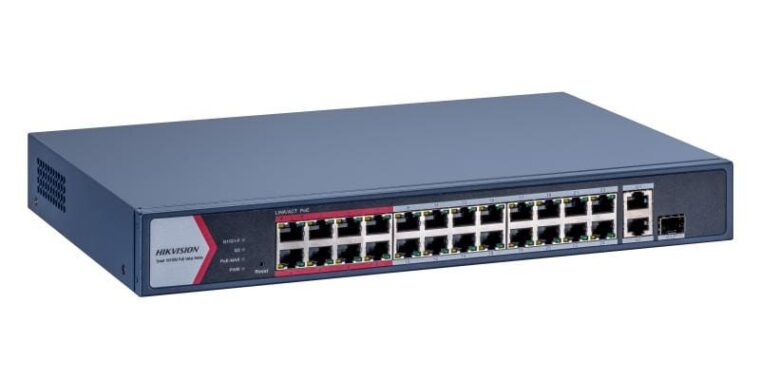

Hikvision DS-3E1326P-EI 24 Port Fast Ethernet Smart POE Switch

Hikvision DS-3E1326P-EI;

• Ports: 24 x 10/100 Mbps Ethernet ports, 2 x Gigabit SFP ports
• PoE Capability: Supports PoE and PoE+ (802.3af/at) with a total power budget of 370 watts
• Forwarding Rate: 6.5 Mpps
• Switching Capacity: 8.8 Gbps
• VLAN: Supports up to 4K VLANs
• Port Mirroring: Supports one-to-one and many-to-one port mirroring
• Dimensions: 440 x 285 x 44mm (17.3 x 11.2 x 1.7in)
• Weight: 4.26 kg (9.4 lb)
• Power Input: 100-240V AC, 50/60Hz

The Hikvision DS-3E1326P-EI is a 24-port Fast Ethernet Smart POE (Power over Ethernet) switch designed for small to medium-sized businesses. It provides 24 10/100 Mbps Ethernet ports and 2 Gigabit SFP ports for uplink connectivity, allowing for a total of 26 network connections.

This switch also supports PoE+ (802.3at) and can deliver up to 30 watts of power per port, making it suitable for powering PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones. The switch has a total power budget of 370 watts, which means it can power multiple devices simultaneously.

In terms of management, the DS-3E1326P-EI offers a range of features including QoS (Quality of Service), VLAN (Virtual Local Area Network), IGMP (Internet Group Management Protocol) snooping, and port mirroring. It also supports SNMP (Simple Network Management Protocol) for remote monitoring and management.

Overall, the Hikvision DS-3E1326P-EI is a reliable and cost-effective solution for small to medium-sized businesses that need a switch with PoE capabilities to power their network devices.

Hikvision DS-3E1326P-EI Specifications

• Ports: 24 x 10/100 Mbps Ethernet ports and 2 x Gigabit SFP ports
• Power over Ethernet: IEEE 802.3af/at, up to 30W per port, total power budget of 370W
• Switching capacity: 8.8 Gbps
• Forwarding rate: 6.55 Mpps
• MAC address table size: 8K
• Jumbo frame: 9KB
• VLAN: IEEE 802.1Q, up to 4K VLANs
• Quality of Service: 802.1p CoS/DSCP priority, strict priority and weighted round-robin (WRR)
• Management: Web-based management, SNMP v1/v2c/v3, RMON (Remote Monitoring), Port Mirroring, DHCP (Dynamic Host Configuration Protocol) client
• Operating temperature: 0°C to 40°C
• Power supply: AC 100-240V, 50/60Hz
