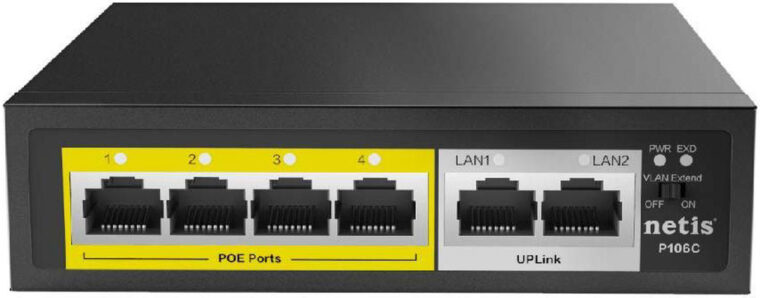

Netis P106C 4-POE+2 Uplink Fast POE Ethernet Switch

The Netis P106C 4-PoE + 2 Uplink Fast Ethernet Switch is a compact PoE network switch designed for CCTV systems, wireless access points, IP phones, and other PoE-enabled devices. It provides 4 PoE ports and 2 uplink ports, allowing users to transmit both power and data through Ethernet cables.
In addition, the P106C provides a 60W total PoE power budget and supports IEEE 802.3af/at devices. Moreover, its Extend + Watch Dog mode supports transmission distances of up to 250 metres while automatically restarting problem ports. Therefore, it is a practical choice for CCTV and small network installations that need reliable PoE connectivity.

Key Features

• 4 × 10/100Mbps PoE ports
• 2 × 10/100Mbps uplink ports
• 60W total PoE power budget
• Up to 30W PoE output per port
• IEEE 802.3af/at PoE support
• Extend mode up to 250 metres
• AI Watch Dog for automatic port recovery
• 1.2Gbps switching capacity
• Plug-and-play operation
• Auto MDI/MDIX support
• Over-current, over-voltage, and short-circuit protection
• Durable steel housing
• Suitable for IP cameras, access points, IP phones, and other PoE devices

Netis P106C FAQs

1. What is the Netis P106C used for?

The Netis P106C provides both power and network data to compatible PoE devices through Ethernet cables. Therefore, it is especially useful for CCTV cameras, wireless access points, IP phones, and other devices that support IEEE 802.3af/at PoE.

2. How many PoE ports does the Netis P106C have?

The switch provides 4 PoE ports and 2 additional uplink ports. As a result, users can power up to four compatible PoE devices while using the uplink ports to connect the switch to an NVR, router, or main network.

3. How much PoE power does the P106C provide?

The P106C provides a 60W total PoE power budget, while a single port can supply up to 30W. In addition, the switch automatically detects compatible IEEE 802.3af/at devices before supplying power.

4. Can the Netis P106C power IP cameras?

Yes. The switch can power compatible PoE IP cameras directly through the Ethernet cable. Therefore, installers can reduce the need for separate power cables and simplify CCTV installations.

5. How far can the Netis P106C transmit power and data?

In Extend + Watch Dog mode, the switch can support transmission distances of up to 250 metres on ports 1–4. As a result, it is useful when cameras or other network devices are installed farther away from the main network equipment.

6. What does the AI Watch Dog function do?

The AI Watch Dog monitors connected ports and can automatically restart a problem port when a connected device stops responding. Consequently, it can help restore devices such as IP cameras without requiring a manual restart.

7. Does the P106C require configuration?

No. The Netis P106C supports plug-and-play operation. Therefore, users can connect the power, Ethernet cables, and compatible PoE devices without complicated software configuration.
