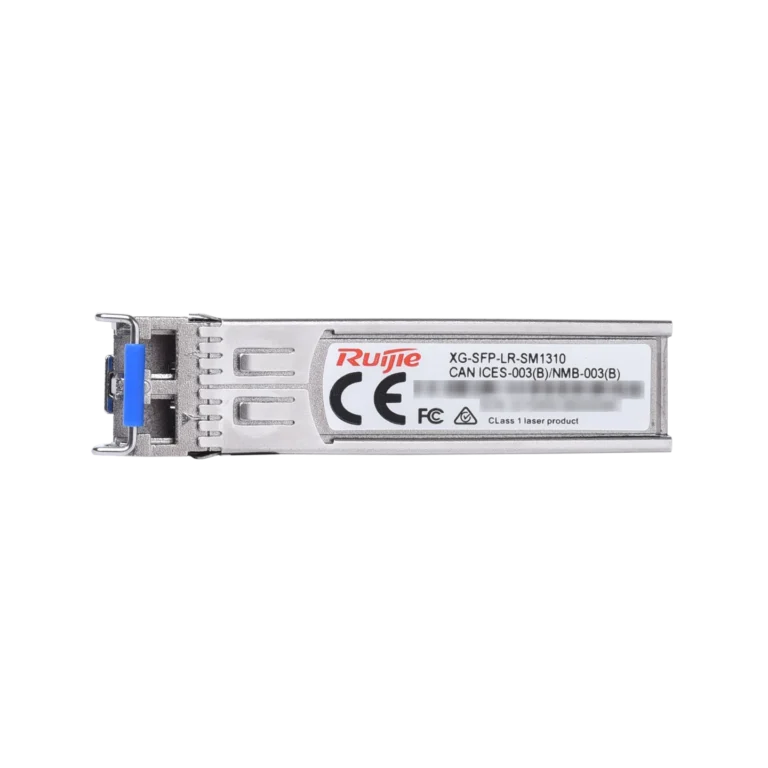

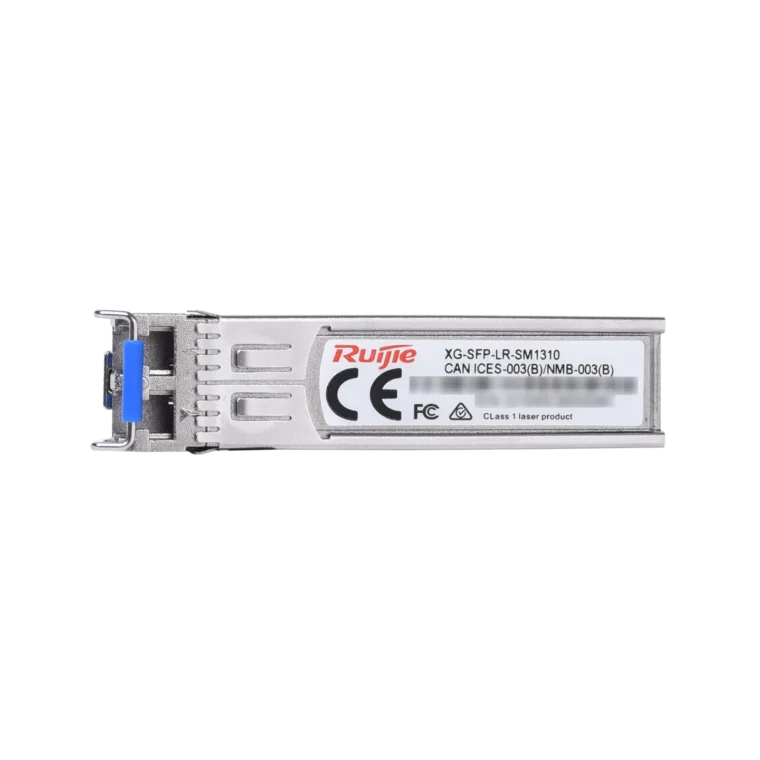

Ruijie Reyee XG-SFP-LR-SM1310 10G Base-LR SFP+Transceiver Module

The XG-SFP-LR-SM1310 Ruijie Reyee 10G SFP+ Transceiver Module is designed for fast and reliable fiber connections between compatible switches, routers, servers, and other network equipment.

It supports 10 Gigabit Ethernet over single-mode fiber and can transmit data up to 10km, making it suitable for campus networks, data centres, office buildings, and long-distance backbone connections.

Key Features

• 10GBASE-LR SFP+ transceiver
• 10 Gigabit Ethernet connectivity
• Supports single-mode fiber
• Up to 10km transmission distance
• 1310nm wavelength
• Duplex LC fiber connection
• Hot-pluggable SFP+ design
• Digital Diagnostic Monitoring support
• Suitable for compatible Ruijie and Reyee network equipment
• Designed for long-distance fiber links
• Compact and easy to install

Ruijie Reyee XG-SFP-LR-SM1310 FAQs

1. What is the Ruijie XG-SFP-LR-SM1310 used for?

It is used to create 10Gbps fiber links between compatible network devices. It is especially useful for backbone and long-distance network connections.

2. How far can the module transmit data?

It supports transmission distances of up to 10km when used with suitable single-mode fiber.

3. What type of fiber cable does it use?

It uses single-mode fiber, typically 9/125µm. The connection uses a duplex LC interface.

4. What speed does the module support?

It supports 10 Gigabit Ethernet. This makes it suitable for high-speed network uplinks and backbone connections.

5. Can I install the module while the switch is powered on?

Yes. The SFP+ format supports hot-plug installation in compatible network equipment.

6. Does it support digital monitoring?

Yes. The module supports Digital Diagnostic Monitoring, allowing compatible equipment to monitor optical performance and module status.

7. Is it suitable for connecting buildings?

Yes. Its 10km single-mode fiber range makes it suitable for connecting buildings, offices, or network rooms over longer distances.

8. What connector does the module use?

It uses a duplex LC connector. This is a common connector type for enterprise fiber network installations.

Fiber Details

• Fiber Type: Single-mode fiber
• Recommended Fiber Size: 9/125µm
• Connector: Duplex LC
• Maximum Distance: Up to 10km
• Wavelength: 1310nm
• Speed: 10 Gigabit Ethernet
• Monitoring: Supports DDM for compatible devices
