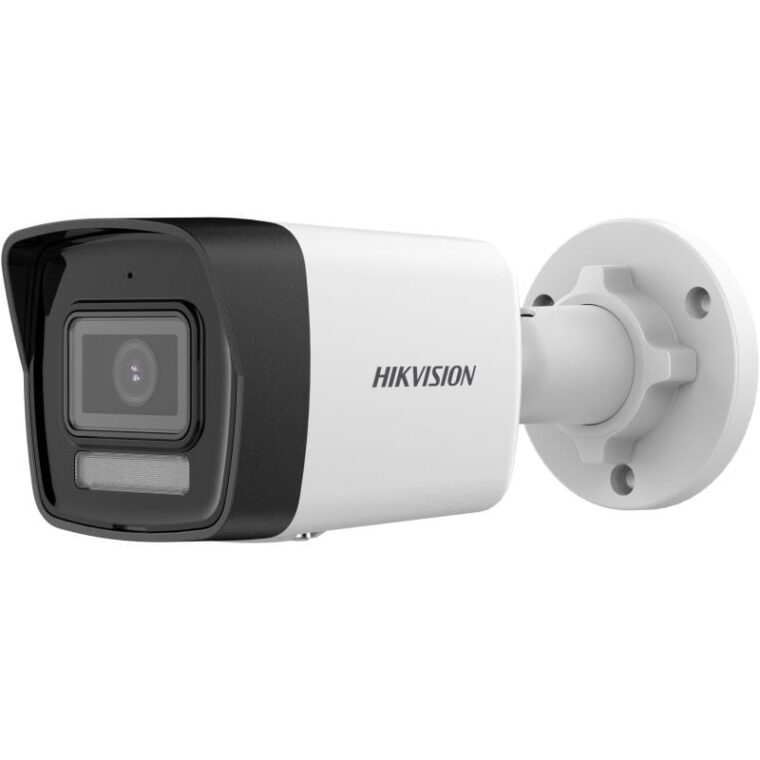

DS-2CD1023G2-LIU(F) 2 MP Smart Hybrid Light Hikvision Fixed Bullet Network Camera

DS-2CD1023G2-LIU(F) 2 MP Smart Hybrid Light Fixed Bullet Network Camera

The Hikvision DS-2CD1023G2-LIU(F) 2 MP Smart Hybrid Light Fixed Bullet Camera designed for reliable security in homes, offices, and businesses. It delivers clear Full HD images, advanced smart features, and strong outdoor protection.

Key Features

• 2MP Smart Imaging: Full HD resolution (1920 × 1080) for sharp details.

• Smart Detection: Supports human and vehicle detection for accurate alerts.

• Smart Hybrid Light: Advanced technology with long-range IR and white light up to 30 m.

• Built-in Microphone: Captures real-time audio for better security.

• Strong Protection: Water and dust resistant with IP67 rating.

• Efficient Storage: H.265+ compression reduces bandwidth and saves storage.

• On-board Storage: MicroSD slot supports up to 512 GB (optional).

DS-2CD1023G2-LIU(F) 2 MP Image Performance

The camera uses a 1/2.9″ progressive scan CMOS sensor that works well in low light. It captures color at 0.005 Lux (F1.6, AGC ON) and switches to 0 Lux with IR.

• Day/Night Modes: IR cut filter with Auto, Day, or Night switching.

• Image Adjustments: Pan (0°–360°), Tilt (0°–90°), and Rotate (0°–360°).

• Lens Options:

  • 2.8 mm lens – Horizontal FOV 103°, Vertical 56°, Diagonal 121°

  • 4 mm lens – Horizontal FOV 83°, Vertical 44°, Diagonal 99°

• DORI (Detection, Observation, Recognition, Identification):

  • 2.8 mm lens: D 45 m, O 18 m, R 9 m, I 4 m

  • 4 mm lens: D 56 m, O 22 m, R 11 m, I 5 m

Video and Compression

• Main Stream:

  • 50 Hz: 25 fps @ 1080p / 720p

  • 60 Hz: 30 fps @ 1080p / 720p

• Sub Stream:

  • 50 Hz: 25 fps @ 640 × 480 / 640 × 360

  • 60 Hz: 30 fps @ 640 × 480 / 640 × 360

• Compression Formats: H.265+/H.265/H.264+/H.264, MJPEG

• Bitrate Control: CBR / VBR (32 Kbps to 8 Mbps)

• ROI (Region of Interest): 1 fixed region for the main stream

Audio Features

• Audio Type: Mono with noise filtering

• Sampling Rate: 8 kHz / 16 kHz

• Compression Options: G.711u, G.711a, G.722.1, G.726, MP2L2, PCM, AAC-LC

• Bit Rates: 16 Kbps – 160 Kbps depending on codec

DS-2CD1023G2-LIU(F) 2 MP Network and Security

The camera supports multiple network protocols like TCP/IP, DHCP, DNS, RTP, RTSP, NTP, IPv6, FTP, SMTP and more.

Security Features include:

• Password protection

• Complicated password requirement

• Watermark

• Authentication (HTTP, WSSE, Digest, ONVIF, MAC address)

• Security audit log

It allows up to 6 simultaneous live view channels and supports open APIs such as ONVIF (Profile S, T, G for -F model), ISAPI, and SDK

Smart Hybrid Light Fixed Bullet Network Camera

The Smart Hybrid Light Fixed Bullet Network Camera is a reliable security solution designed for both small and large-scale surveillance needs. It offers excellent image quality, multiple user access levels, and flexible connectivity options. With advanced features and durable design, this camera ensures strong performance in different environments.

Package and Environment

• Camera weight: Approx. 265 g (0.6 lb.)

• With package weight: Approx. 495 g (1.1 lb.)

• Package dimension: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)

For storage and operation, the camera works in extreme conditions:

• • Temperature: -30 °C to 60 °C (-22 °F to 140 °F)

  • Humidity: 95% or less (non-condensing)
