MikroTik RB3011UiAS-RM RouterBoard 10xGigabit Ethernet, USB-3.0, LCD, RB3011

MikroTik RB3011 UiAS-RM RouterBoard 10xGigabit Ethernet, USB-3.0, LCD, RB3011 Starmount Solutions Limited

Shop for MikroTik RB3011 UiAS-RM RouterBoard 10xGigabit Ethernet, USB-3.0, LCD, and RB3011 in Nairobi, Kenya at Starmount Solutions Limited MikroTik dealers.

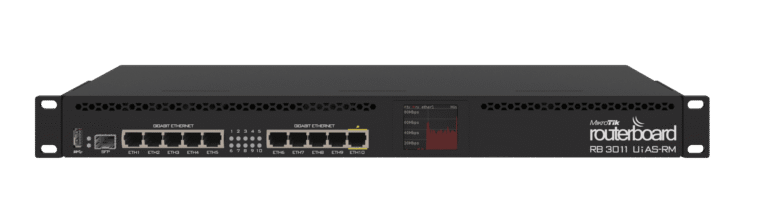

The RB3011 is a new multi-port device, the first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a Super Speed full size USB 3.0 port, for adding storage or an external 3G/4G modem. RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

RB3011UiAS-RM Specifications:

• Product code:                                                  RB3011UiAS-RM
• Architecture:                                                   ARM 32bit
• CPU:                                                               IPQ-8064
• CPU core count:                                                         2
• CPU nominal frequency:                                1.4 GHz
• Dimensions:                                                    443 x 92 x 44 mm
• License level:                                                  5
• Operating System:                                          RouterOS
• Size of RAM:                                                  1 GB
• Storage size:                                                    128 MB
• Storage type:                                                   NAND
• Tested ambient temperature:                           -20°C to 70°C
• PoE in:                                                            Passive PoE
• PoE in input Voltage:                                     10-30 V
• Number of DC inputs:                                                2 (DC jack, PoE-IN)
• DC jack input Voltage:                                               10-30 V
• Max power consumption:                               30 W
• Max power consumption without attachments:          10 W
• FAN count:                                                     Passive
• PoE-out ports:                                                 Ether10
• PoE out:                                                          Passive PoE
• Max out per port output (input < 30 V):                     600 mA
• Max total out (A):                                           600 mA
• 10/100/1000 Ethernet ports:                           10
• SFP ports:                                                       1
• Serial port:                                                       RJ45
• Number of USB ports:                                                1
• USB Power Reset:                                          Yes
• USB slot type:                                                USB 3.0 type A
• Max USB current (A):                                                1
• PCB temperature monitor:                              Yes
• Voltage Monitor:                                            Yes
• Certification:                                                   CE/RED, EAC, ROHS
