Description

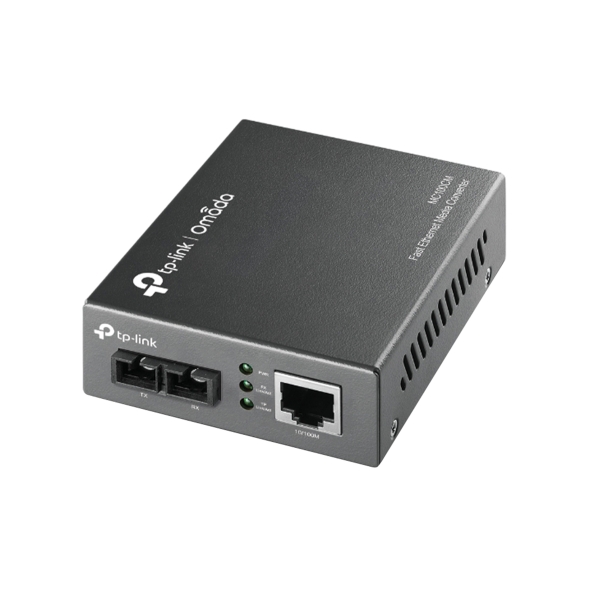

Tp-Link TL-MC100 Media converter
Shop for Tp-Link TL-MC100 Media converter in Nairobi, Kenya from Starmount Solutions
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.It Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector.
The MC100CM supports longwave (LX) laser specification at a full wire-speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand-alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
Product Specifications
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km (1.2 miles) |
| Ports | 1x 100M dual SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Multi-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
